Automated Chemical Dosing System for Dyeing Wastewater Treatment
This fully integrated automatic dosing system is designed for precise chemical preparation, mixing, fluid transfer, and process control. It is widely applied in raw water pretreatment, boiler feedwater conditioning, oilfield dehydration, and various industrial wastewater treatment processes—specifically tailored for the challenging effluent from textile dyeing plants. The system accurately injects coagulants, phosphates, ammonia, lime slurry, corrosion inhibitors, scale inhibitors, and biocides to meet stringent water treatment standards.
Working Principle

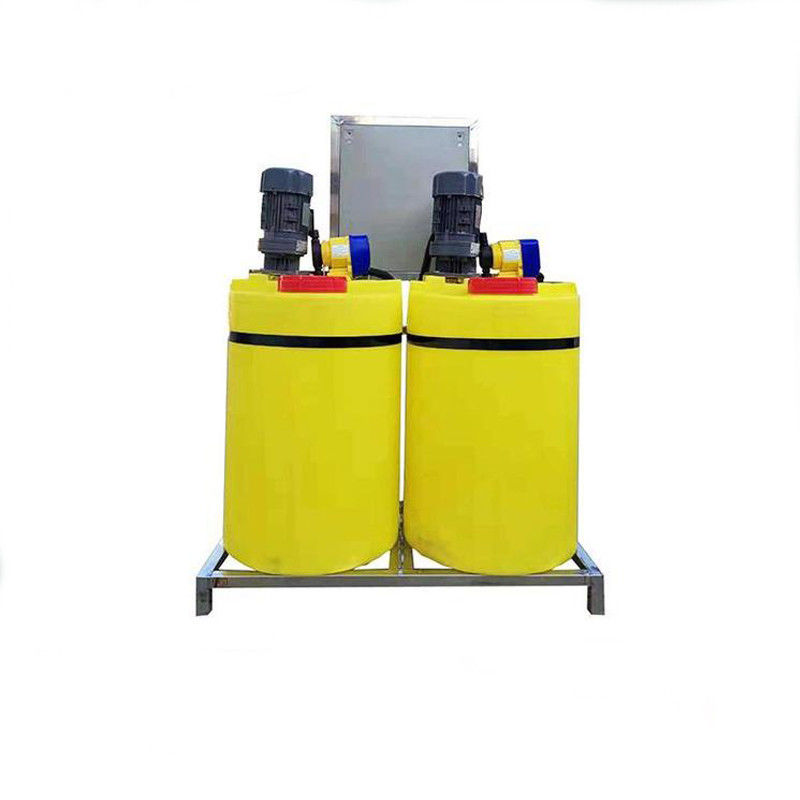

The skid-mounted system primarily consists of solution tanks, agitators, and metering pumps. Chemicals are diluted and mixed to the desired concentration in the mixing chamber. After homogenization by the mechanical agitator, the solution is delivered to designated injection points via precision metering pumps. The unit is compact, safe, and user-friendly. It can be customized with additional components and integrated with SCADA or PLC systems to support fully automated operation and remote monitoring.
Key Applications
Industrial Boiler Water Treatment: Used in thermal power plants, chemical processing, metallurgy, marine vessels, and central heating systems for conditioning boiler feedwater.
Raw Water Pretreatment: Applied in municipal waterworks, textile dyeing, steel manufacturing, and papermaking industries for pre-filter chemical dosing.
Wastewater & Effluent Treatment: Employed in urban WWTPs, industrial parks, and large commercial facilities for treating dyeing wastewater and other high-strength effluents.
Parameters
| Type | QJY-500 | QJY-1000 | QJY-1500 | QJY-2000 | QJY-3000 | |
| production abilityQ(L/h) | 500 | 1000 | 1500 | 2000 | 3000 | |
| Size | 900x1500x1650 | 1000 x 1625 x1750 | 1000 x 2440x1800 | 1220 x 2440 x180C | 1220x3200x2000 | |
| Powder Dosing PowerNi(KW) | 0.18 | 0.18 | 0.18 | 0.18 | 0.18 | |
| blender | Blade diameterG(mm) | 250 | 250 | 250 | 250 | 250 |
| Vertical spindle speed(i/min) | 96 | 96 | 96 | 96 | 96 | |
| PowerN2(KW) | 0.55 x 2 | 0.55x2 | 0.55 x 2 | 0.55x2 | 0.55x2 | |
| Dosing screw pump | Flow Q2(mV h) | 1 | 1 | 1.5~2.0 | 1.5-2.0 | 3.0~ 5.0 |
| Lifth(m) | 20 | 20 | 20 | 20 | 20 | |
| Power N3(KW) | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | |
| Water Inlet Dia(mm) | 20 | 20 | 25 | 25 | 32 | |
| Water outlet Dia(mm) | 20 | 20 | 25 | 25 | 32 | |
| Installation | B | 900 | 1000 | 1000 | 1220 | 1220 |
| L | 1500 | 1625 | 2440 | 2440 | 3200 | |
| H | 1650 | 1750 | 1800 | 1800 | 2000 | |
| Hi | 800 | 1050 | 1050 | 1050 | 1350 | |
FAQ
Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, or directly contact us by the clicking the “contact” icon. We Can Assist You In Model Selection.
Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering Machine ,Which Is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.
Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.
Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 15,000m² And Produces Machines 2000 Sets Per Year.
Q: How Could We Trust You And Your Company? Is This Your First Time Transaction?
A: A: Our Company Has More Than 20 Years Professional Experience. We Cooperate Over 800 Customers in China And Overseas. We Export Nearly 60 Countries All Over The World. And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates.
Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts, Field Maintenance Repair Service
